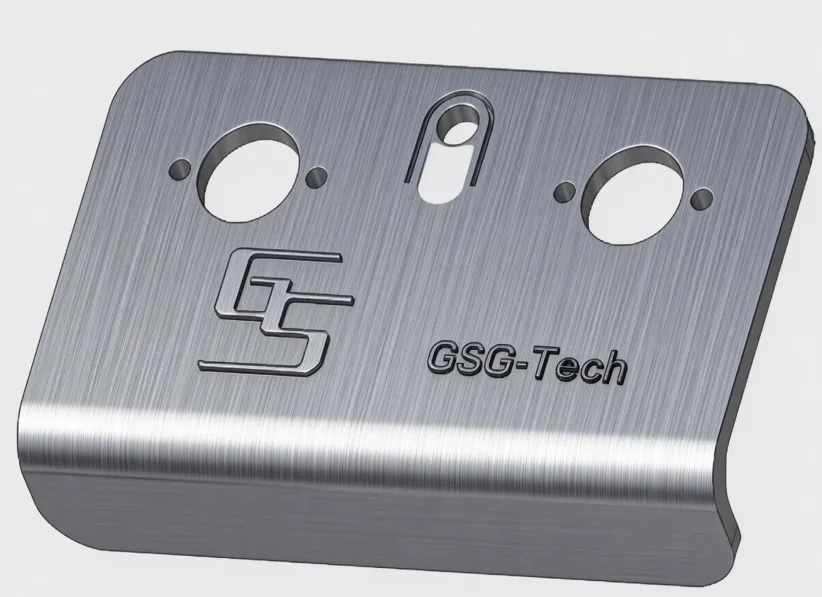

Custom Sheet Metal Fabrication
Precise sheet metal parts for rapid prototyping and mass production with tight tolerances, ISO-certified quality, and fast global delivery.
ISO certified
No minimums
A wide range of material and finishing options
Precision Sheet Metal Fabrication Available at GSG-Tech
With over 50 advanced machines including laser cutters, press brakes, and welders, we supply parts from prototypes to high-volume production.
Materials for Custom Sheet Metal Fabrication
Choose from a wide variety of metals. Each material is selected for its unique properties to perfectly match your project's needs.
Metals
Aluminum
Lightweight, corrosion-resistant, and featuring a high strength-to-weight ratio, aluminum is ideal for aerospace, automotive, and construction industries. It is also highly machinable.
Color:
Silver
Grades:Aluminum 5052, 5083, 6061
Lead Time:Approx. 5 business days
GSG-Tech Sheet Metal Fabrication Capabilities
At GSG-Tech, we offer comprehensive sheet metal fabrication solutions designed to support both prototyping and production with high precision and efficiency.
| Feature | Description |
|---|---|
| Maximum Sheet Size | Standard processing supports sheet sizes up to 5' × 10' (1.52 m × 3.05 m), with larger formats available based on project requirements. |
| Lead Time | Typical turnaround starts from as fast as 3 business days, depending on part complexity and order volume. |
| Material Thickness | We commonly process sheet thicknesses ranging from 0.6 mm to 6 mm (0.024"–0.250"), with flexibility for thinner or thicker materials upon request. |

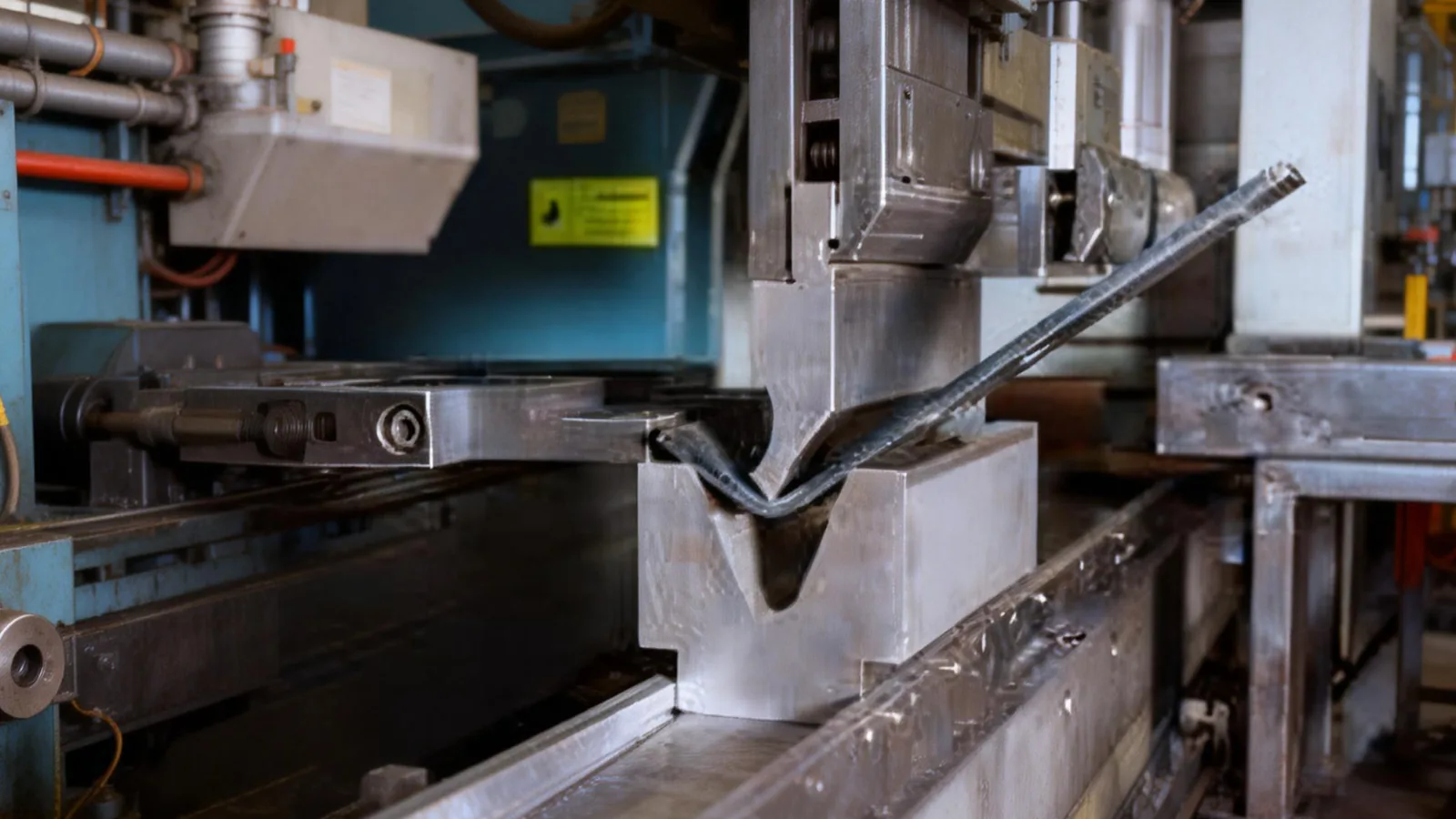

| Bending Capabilities | Advanced bending equipment supports long parts and complex geometries, ensuring consistent angles and repeatable accuracy. |

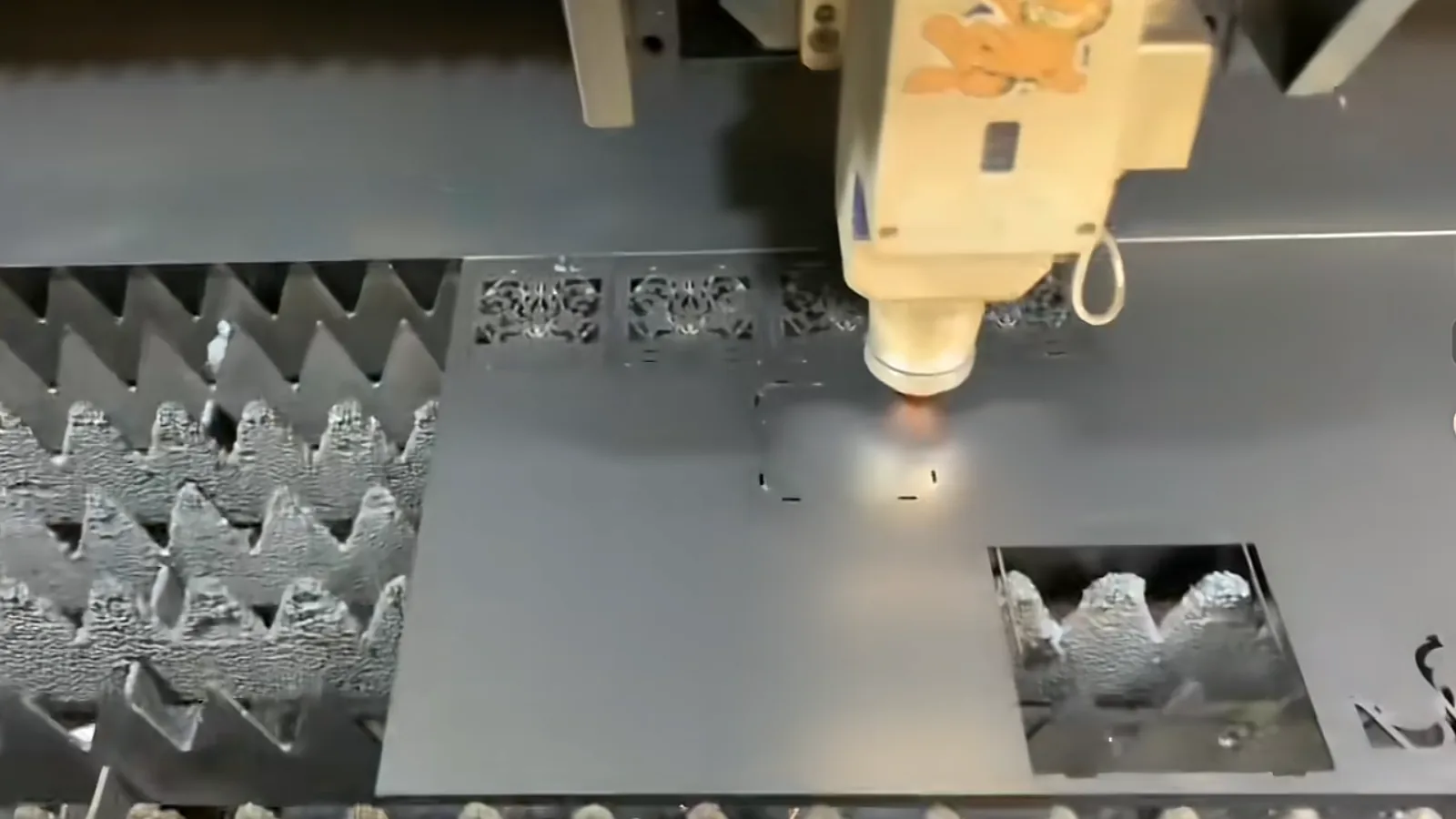

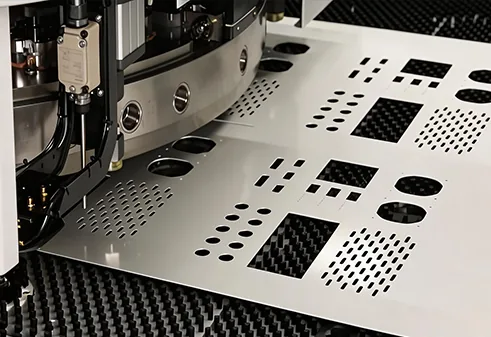

| Punching & Cutting | High-precision punching and cutting processes support a wide range of hole sizes and complex patterns, tailored to your design needs. |

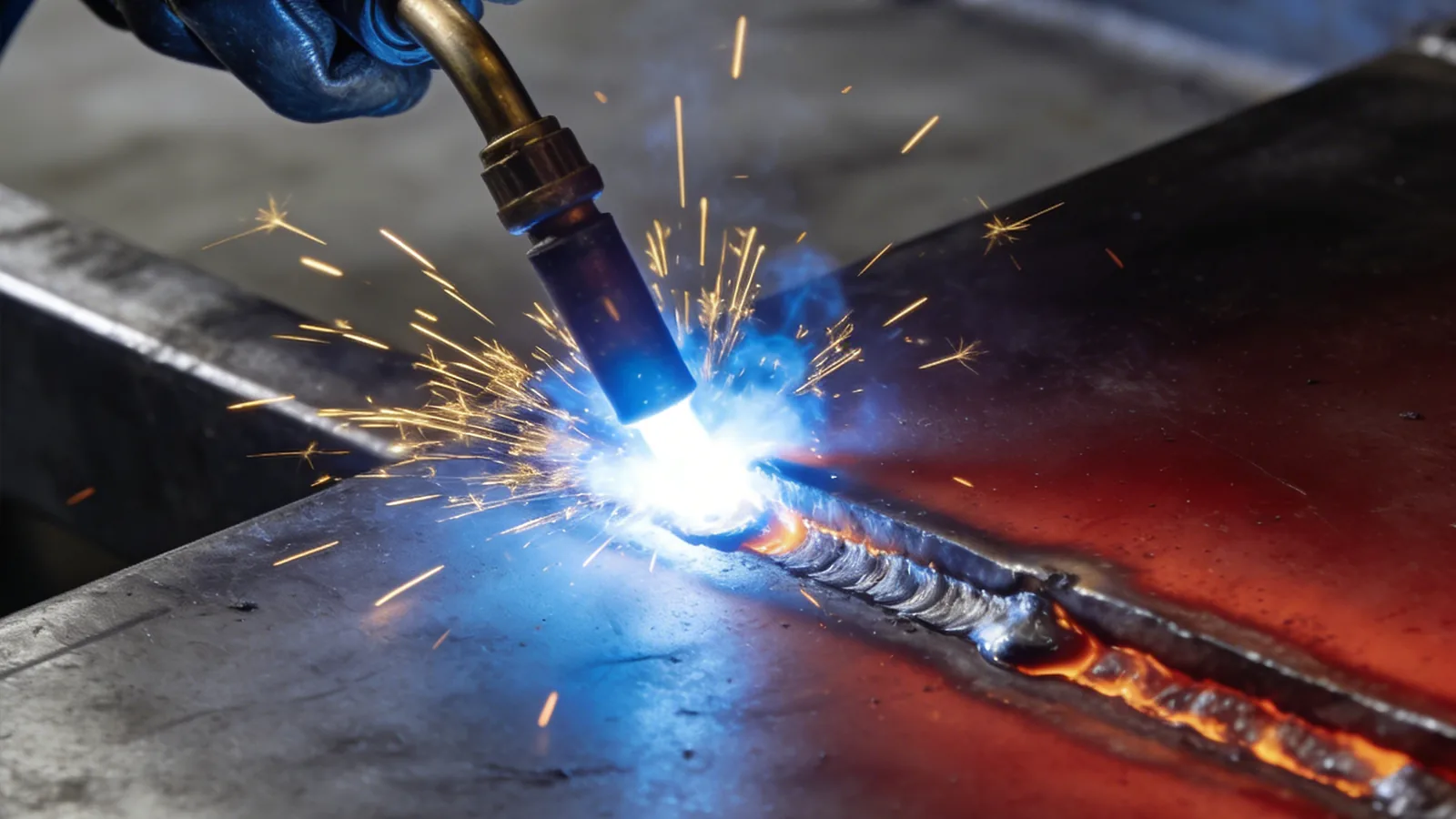

| Welding & Assembly | We provide professional welding services, including seams, structural weldments, and complete assemblies for finished parts. |
| Surface Finishing | Additional finishing options such as powder coating, anodizing, and plating are available to enhance durability and appearance. |
Surface Finishing Services for Custom Sheet Metal
Our finishing solutions enhance the durability and aesthetics of your parts. Contact us for specific custom requirements.
As-Machined
Provides a cost-effective option with visible tool marks, as the surface is left directly from the CNC machine.
Anodizing
Improves corrosion and wear resistance while allowing for color dyeing, ideal for aluminum components.
Polishing
Achieves a high-gloss finish, reducing surface roughness and enhancing the aesthetic appeal of the metal.
Sandblasting
Uses pressurized sand or other media to clean and treat the surface, creating a uniform matte finish.
Brushed Finish
Creates a unidirectional fine texture, reducing the visibility of marks and scratches on the surface.
Powder Coating
Provides a thick, durable, and wear-resistant coating with excellent color and texture options for various surfaces.
Electroplating
Bonds a thin metal layer to the part, enhancing wear resistance, corrosion resistance, and surface conductivity.
Black Oxide
A conversion coating for ferrous metals that improves corrosion resistance and minimizes light reflection.
Electropolishing
An electrochemical process that smooths and brightens the surface while significantly improving corrosion resistance.
Alodine
A chromate conversion coating for aluminum that provides corrosion protection and improves paint adhesion.
Sheet Metal Fabrication Service for Prototyping to Production
Sheet Metal Fabrication Design Guidelines
GSG-Tech's sheet metal fabrication design guidelines ensure manufacturability, precision, and cost efficiency. These rules, based on material thickness (MT), help avoid defects like cracking or deformation during bending, punching, and forming.
| Feature | Description (MT = Material Thickness) | Note |
|---|---|---|
| Bend Radii | Recommended inside bend radius starts at 1X MT to prevent material stress and cracking. | Tighter radii may work for softer metals like aluminum but require engineering review for harder alloys. Always specify radius clearly in CAD models. |
| Hole Placement | Maintain at least 2X MT from any hole edge to the sheet edge to ensure structural integrity. | Holes spaced closer than 6X MT center-to-center risk deformation during fabrication. For slots or non-circular features, increase to 4X MT minimum. |
| Bend-to-Feature Clearances | Keep holes or cutouts at least 6X MT from bend lines to avoid tearing during forming. | Add bend radius to this distance if features are on the bend side. Relief notches of 1X MT width help isolate bends from nearby holes. |
| Countersink and Depth Rules | Minimum countersink depth is 0.6X MT to achieve proper taper without breakthrough. | Position countersinks 8X MT from other features to prevent web thinning. Use standard 82° or 90° angles for best tool life. |
| Edge Breaks and Fillets | Apply 0.5X MT fillets at inside corners to reduce stress concentrations and improve flow in bends. | Break sharp edges by 0.01-0.02 inches across all exposed edges to eliminate burrs and handling hazards. Relief cuts should be 1X MT deep for clean separations. |
Sheet Metal Fabrication Design Guidelines
GSG-Tech's sheet metal fabrication design guidelines ensure manufacturability, precision, and cost efficiency. These rules, based on material thickness (MT), help avoid defects like cracking or deformation during bending, punching, and forming.
| Lead Time Stage | Capabilities | Suitable Conditions | Typical Applications |
|---|---|---|---|
| Fast Turnaround (≈3 Days) | Laser cutting, punching, deburring, basic bending (≤10-12 bends), standard tapping and hardware insertion | Thin sheet materials, simple geometries, low complexity parts | Brackets, panels, covers, flat parts, mounting components |
| Standard Production (≈5 Days) | Multi-step forming, tighter tolerances, CNC secondary machining features, more complex bending | Wider material thickness range, moderate complexity designs | Enclosures, functional components, structural sheet metal parts |
| Extended Lead Time (Custom) | Welding, assembly, complex forming, surface finishing (powder coating, plating, marking, masking) | High complexity parts, multi-process requirements, finishing needs | Weldments, assemblies, end-use products, multi-component systems |
Why Choose GSG-Tech
ISO-Certified
Our ISO 9001 and ISO 13485:2016-certified CNC machining process ensures dimensional accuracy, surface integrity, and consistent performance across prototypes and production runs.
98% On Time Delivery
With advanced CNC equipment, optimized scheduling, and an integrated manufacturing network, we deliver parts with industry-leading speed.
15+ Year Experience
Our experience enables us to anticipate challenges early, optimize production processes, and consistently deliver reliable, high-precision parts.
Engineering Support
Our experienced engineering team works closely with you from design to delivery.
