When you are looking for machining services for complex metal parts, you will likely frequently hear two very common terms: CNC milling and CNC turning. CNC milling and CNC turning are the most commonly used machining methods in any machine shop, and both fall under the umbrella of CNC machining service：

They are controlled by computers (CNC = Computer Numerical Control)

They use cutting tools to remove material

They follow digital design files (CAD models)

They are subtractive manufacturing processes

They can achieve very high precision and repeatability

In simple words:

Both CNC milling and CNC turning are automated ways to “cut material into a desired shape” using machines and computer programs.

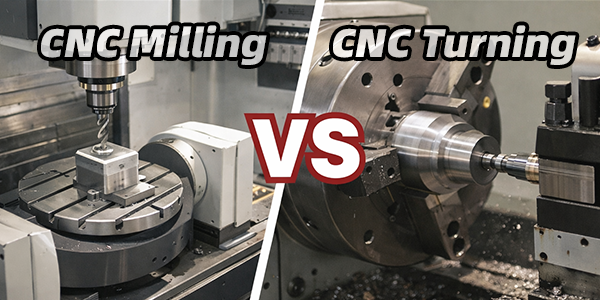

What Is the Difference Between CNC Milling & Turning?

Both are widely used in modern manufacturing, and both are controlled by computers. However, they are used for different types of parts and work in very different ways.

The main difference is how the cutting happens.

CNC Turning – The Material Spins

CNC Milling – The Tool Spins

Therefore, these two types of machine tools use different machining techniques to manufacture parts. Milling machines create complex parts by cutting away excess material from a metal block, while turning is typically used for machining cylindrical parts, such as shafts.

What Is CNC Turning?

CNC Turning (also called CNC Lathing) is a process where the workpiece rotates at high speed while a single-point cutting tool is fed into it along linear paths. The workpiece is held and driven by a spindle, specifically by a chuck or collet. Cutting tools are mounted on a tool holder or turret and move primarily along different linear axes relative to the rotating workpiece. The primary action is the removal of material from the outer diameter (OD) or inner diameter (ID, via boring) to create cylindrical, conical, or circular features. Common operations include facing (creating a flat end surface), straight turning (reducing OD), taper turning, grooving, parting (cutting off), and threading.

Typical parts made by CNC turning:

Shafts

Bushings

Sleeves

Pins

Threaded components

Cylindrical connectors

How to understand CNC turning in the simplest way:

Imagine you are holding an apple and peeling it with a knife, the apple rotates in your hand, the knife stays in one position, the shape becomes round and smooth.

This is exactly how CNC turning works.

The raw material (usually a round bar) spins at high speed, and the cutting tool removes material from the outside or inside.

What Is CNC Milling?

CNC Milling is a subtractive manufacturing process where a rotating multi-point cutting tool removes material from a stationary workpiece. The workpiece is securely fixed to a table, typically held in a vise or directly bolted to the machine bed. The spindle, which holds the cutting tool, rotates at high speeds (RPM) and can move along multiple linear axes for complex operations. Material is removed through a combination of the tool's rotation and its precise programmed movement along these paths, creating features like pockets, slots, holes, contours, and complex 3D surfaces. Common cutting actions include face milling (for flat surfaces), peripheral milling (for profiling), drilling, and contouring.

In CNC milling, material removal happens through intermittent cutting, meaning the tool teeth repeatedly engage and disengage with the workpiece. This makes milling especially suitable for producing flat surfaces, complex cavities, and non-axisymmetric parts. Depending on the machine configuration, CNC milling can be performed on 3-axis, 4-axis, or 5-axis machines.

3-axis milling moves along X, Y, Z and is ideal for simple geometries.

5-axis milling adds two rotational axes, enabling the tool to approach the part from multiple angles, which is critical for aerospace, medical, and highly complex components.

In modern manufacturing, CNC milling is considered the most versatile machining process, capable of producing both simple and highly complex parts with tight tolerances and excellent surface finish.

Typical parts made by CNC milling:

Housings

Brackets

Plates

Heat sinks

Molds

Structural components

How to understand CNC turning in the simplest way: Now imagine a block of wood on a table. The wood stays still, a rotating electric cutter moves around, the cutter carves out different shapes.

This is how CNC milling works.

The material is usually fixed, while the cutting tool rotates and moves in multiple directions.

$\"cnc$

Key Differences in Cutting Mechanics:

Tool & Motion: Milling uses a rotating multi-point tool moving against a stationary workpiece. Turning uses a typically stationary single-point tool moving against a rotating workpiece.

Geometry Produced: Milling is ideal for prismatic parts (block-like features) and complex 3D shapes. Turning is designed for axisymmetric or rotationally symmetric parts (round features like shafts, bushes, discs).

Force & Setup: In milling, cutting forces vary as the tool engages and exits the material; workholding focuses on stabilizing a static block. In turning, cutting forces are more constant but the setup must securely hold a rotating part against centrifugal force and cutting pressure.

In summary, CNC Milling is characterized by a spinning cutter carving a fixed block, while CNC Turning is characterized by a spinning workpiece being shaped by a moving tool. They are fundamentally complementary processes, often used together to manufacture a complete component.

Feature	CNC Turning	CNC Milling
Primary Rotation	The Workpiece spins	The Tool spins
Tool Movement	Tool is stationary (moves linearly)	Tool rotates and moves across axes
Cutting Action	Continuous contact (single-point)	Intermittent contact (multi-point)
Ideal Geometry	Cylindrical, Round, Conical	Flat, Square, Complex 3D Shapes

When Do You Use CNC Milling vs CNC Turning?

This is the real-world factory rule:

Use CNC Turning When:

The part is round

The part has a center axis

You need high concentricity

You are making shafts or tubes

Use CNC Milling When:

The part has flat surfaces

The part has pockets or slots

The geometry is complex

The part is square or irregular

Very Common in Reality:

Most industrial parts actually use both.

Example:
A metal connector:

First: CNC turning for round body

Then: CNC milling for holes and flats

This is called:

Turn-mill machining (combined process)

How CNC Milling and Turning Fit Into CNC Machining

From an industry perspective:

CNC machining is the big category
CNC milling and CNC turning are the two most important sub-processes.

CNC machining includes many processes such as:

CNC milling

CNC turning

CNC drilling

CNC tapping

CNC boring

CNC grinding

Among all of them:

CNC milling = most versatile

CNC turning = best for round parts

Together, they cover over 90% of custom machined parts in manufacturing.
